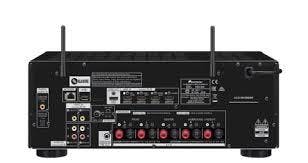

VSX-832
Upgrade your home entertainment to the next level with Pioneer’s VSX-832, the first 5ch AV receiver supporting Dolby Atmos®*1. Enjoy a wide, enveloping soundscape with the Surround Enhancer*1. Ultra HD video, HDR10, and Dolby Vision present life-like images, while FlareConnect™*1, Chromecast*1 built-in, and DTS Play-Fi®*1 let you stream music anywhere in the house. Limitless songs on internet radio and network streaming services are just a few taps away with the Pioneer Remote App.
Specs
Power
| Amplifier Design | Discrete Direct Energy |
| Power Output: Watts per Channel (20Hz-20kHz,.08%THD@8ohm 2ch Driven) | 80 W/ch |
| Estimated Power Consumption/Network Standby off | 400 W/0.1 W |
| Channels | 5 |
| Power Output: Watts per Channel (1kHz,10%THD@6ohm 1ch Driven) | 165 W/ch |
Handheld and Internet
| AirPlay | Yes |
| Made for iPhone and iPod | - |
| Chromecast built-in | Yes (with future firmware) |
| Streaming Audio From PC/Network | - |
| Internet Radio | Yes |
| HTC Connect | - |
| iOS/Android Remote Control APP | Pioneer Remote App |
| TIDAL Music Streaming Service Ready | Yes |
| Pandora Internet Radio | Yes |
Decoders & Formats
| Digital Core DSP Engine | Digital Core Engine with Cirrus Logic (Quad Core) x1 |
| Audio Processing | - |
| Music File Playback | 192 kHz/24-bit ALAC, AIFF, FLAC, WAV Via USB |
| Dolby Atmos | Yes (with future firmware) |
| Dolby Digital Plus | Yes |
| DTS-HD Master Audio | Yes |
| DTS Neo:X | - |
| Audio DACs | 384 kHz/32-bit DAC (AK4438) |
| iPod Digital Audio | - |
| High-Definition Copy Protection (HDCP) | 2.2 |
| Dolby TrueHD | Yes |
| DTS:X | Yes |
| DTS Neural:X | Yes |
| HDMI SACD Transfer | 2 Channel |
Soundfield Calibration
| Phase Control | Yes |
| MCACC Memory | 1 |
| EQ Bands | - |
| X-Curve | - |
| Polarity Check | - |
| MCACC | Yes |
| Standing Wave Control | - |
| Symmetric EQ | Yes |
| Distance Adjustment | - |
| Auto Subwoofer Crossover | Yes |
Listening Modes
| Auto Surround | Yes |
| Advanced Surround | 10+1 |
| Front Stage Surround Advance | Yes |
| Virtual Speakers | - |
| Stream Direct | Yes (Direct, Pure Direct) |
| Wide Surround | - |
| Headphone Surround | - |
Audio Features
| Dialog Enhancement | - |
| DSD Music File | Yes (2ch) |
| Digital Noise Reduction | - |
| Sound Delay (Lip Sync) | Yes (500ms) |
| Bi-Amp | - |
| Advanced Sound Retriever | Yes |
| Sound Retriever AIR | - |
| Tone Control | 2 Channel |
| Speaker A/B | - |
Video Processing
| 4K Ultra HD Pass-Through | Yes (HDR10, Dolby Vision Compatible) |
| 3-D Ready | Yes |
| HDMI Standby Through | Yes with Input Switch / Last Memory |
| HDMI x.v. Color | Yes |
| Video Converter to HDMI | - |
| Component Video Scaler | - |
| Pure Cinema I/P Converter | - |
| 3D Noise Reduction | - |
| 4K Ultra HD Video Scaler | Ultra HD Upscaling |
| Audio Return Channel | Yes |
| HDMI 36-bit Deep Color | Yes |
| Video Processor | - |
| HDMI to HDMI Video Scaler | 4K Ultra HD (for 1080p) |
| Composite Video Scaler | - |
| Advanced Video Adjustment | - |
| Super Resolution | Yes |
Connectivity
| HDMI Input / Output | 4 In (Rear) / 1 Out |
| Wi-Fi Built-In | Yes (Dual Band 5 GHz/2.4 GHz) |
| Wireless Adapter Port | - |
| Component Video Input / Output | - |
| iPhone / iPod / USB Memory Input | - |
| Ethernet Input | Yes |
| Digital Audio Inputs / Output | 2 In (Optical 1, Coaxial 1) |
| Headphone Output | Yes |
| AM/FM Presets | AM/FM Tuner 40 Presets |
| MHL 2 | - |
| Bluetooth Built-In | Yes (Version: 4.1, Profile: A2DP/AVRCP, Codec: SBC/AAC) |
| Bluetooth Adapter Port | - |
| Composite A/V Input / Output | 2 In |
| USB Terminal | Front USB |
| Analog Audio Inputs / Output | 2 In |
| Pre-Amp Output | 0.1 Ch |
| Front A/V Inputs | USB |
Installation
| On-Screen Display | GUI with System/Network Setup Menu |
| Multi-Room and Source Output | - |
| Multi-Zone On-Screen Display | - |
| Function Rename | - |
| Sleep Timer | Yes |
| Auto Power Down | Yes |
| IR Serial Remote In/Out | - |
| FL Dimmer | Yes |
| Remote | Yes |
| Versatile Speaker Configuration | (FRONT, CENTER, SURROUND) |
Construction
| Front Panel | Brushed |
| Speaker Terminals | 5 large |
Warranty
| Warranty | 1 Year Parts & Labor |
Dimensions
| W x H x D (inches) Wi-Fi Antenna's Up | - |
| Weight | 19 |
| W x H x D (inches) | 17.13 x 6.81 x 12.63 |
Docs
Firmware Updates
- Latest firmware update instructions: Firmware Update VSX 832 02 02 2022 .
